PART NO.

規格/編碼

ITEM NO.

品名型號

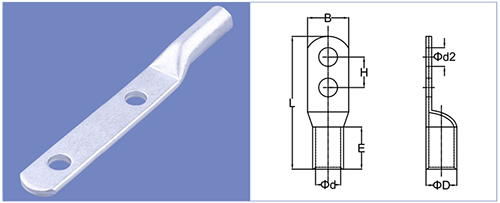

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

H

CL14-2HM6

CL14-2H-6

6.4

13

117.5

8.8

5.8

28.5

45

CL22-2HM8

CL22-2H-8

8.4

16

119.2

11.3

7.7

28.5

CL38-2HM10

CL38-2H-10

10.5

18.3

120

12.4

9.8

31.7

CL38-2HM12

CL38-2H-12

13

18.3

120

12.4

9.8

31.7

CL60-2HM10

CL60-2H-10

10.5

20.5

130

14

11

40

CL60-2HM12

CL60-2H-12

13

20.5

130

14

11

40

CL70-2HM10

CL70-2H-10

10.5

21.4

130

15

12

40

CL70-2HM12

CL70-2H-12

13

21.4

130

15

12

40

CL80-2HM12

CL80-2H-12

13

23.2

130

16

13

40

CL100-2HM12

CL100-2H-12

13

26

132

18

14

42

CL125-2HM12

CL125-2H-12

13

29

135

20

16

42

CL150-2HM12

CL150-2H-12

13

31.5

150

22

17

50

CL180-2HM12

CL180-2H-12

13

33

150

23

18.2

50

CL200-2HM12

CL200-2H-12

13

37

150

26

20

52.5

CL250-2HM12

CL250-2H-12

13

40

150

28

22

50

CL325-2HM12

CL325-2H-12

13

46

180

32

25

68

CL400-2HM12

CL400-2H-12

13

54

180

37

30

60

CL500-2HM12

CL500-2H-12

13

57.5

180

40

31

60

PART NO.

規格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

H

B-CL14-2HM6

B-CL14-2H-6

6.4

13

117.5

8.3

5.8

28.5

45

B-CL22-2HM8

B-CL22-2H-8

8.4

16

119.2

10.7

7.7

28.5

B-CL38-2HM10

B-CL38-2H-10

10.5

17.5

120

11.9

9.8

31.7

B-CL38-2HM12

B-CL38-2H-12

13

17.5

120

11.9

9.8

31.7

B-CL60-2HM10

B-CL60-2H-10

10.5

20.5

130

13.5

11

40

B-CL60-2HM12

B-CL60-2H-12

13

20.5

130

13.5

11

40

B-CL70-2HM10

B-CL70-2H-10

10.5

21.4

130

14.5

12

40

B-CL70-2HM12

B-CL70-2H-12

13

21.4

130

14.5

12

40

B-CL80-2HM12

B-CL80-2H-12

13

23.2

130

15.5

13

42

B-CL100-2HM12

B-CL100-2H-12

13

25

132

17.3

14

42

B-CL125-2HM12

B-CL125-2H-12

13

28

135

19.3

16

42

B-CL150-2HM12

B-CL150-2H-12

13

31

150

21.1

17

50

B-CL180-2HM12

B-CL180-2H-12

13

33

150

22.1

18.2

50

B-CL200-2HM12

B-CL200-2H-12

13

36

150

24.9

20

50

B-CL250-2HM12

B-CL250-2H-12

13

39

150

26.9

22

50

B-CL325-2HM12

B-CL325-2H-12

13

45

180

30.7

25

68

B-CL400-2HM12

B-CL400-2H-12

13

54

180

35.7

30

60

B-CL500-2HM12

B-CL500-2H-12

13

56

180

38.4

31

60
