PART NO.

規格/編碼

ITEM NO.

品名型號

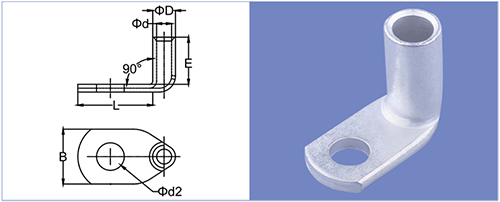

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

LYF10M6D90

LYF90°10-6

6.5

13

18

8

5

15

LYF10M8D90

LYF90°10-8

8.4

13.5

20.5

8

5

15

LYF16M6D90

LYF90°16-6

6.5

13

18

9

6

17

LYF16M8D90

LYF90°16-8

8.4

13.5

20.5

9

6

17

LYF25M6D90

LYF90°25-6

6.5

16

18

11

8

18.5

LYF25M8D90

LYF90°25-8

8.4

16

20.5

11

8

18.5

LYF25M10D90

LYF90°25-10

10.5

17

25

11

8

18.5

LYF35M6D90

LYF90°35-6

6.5

18

18

13

9

22.5

LYF35M8D90

LYF90°35-8

8.4

17

20.5

12

8.5

22.5

LYF35M10D90

LYF90°35-10

10.5

18

25

13

9

22.5

LYF50M6D90

LYF90°50-6

6.5

21

26

14.5

11

30.5

LYF50M8D90

LYF90°50-8

8.4

21

26

14.5

11

30.5

LYF50M10D90

LYF90°50-10

10.5

21

30

14.5

11

30.5

LYF50M12D90

LYF90°50-12

13

21

32

14.5

11

30.5

LYF70M6D90

LYF90°70-6

6.5

24

26

16.5

12

31.5

LYF70M8D90

LYF90°70-8

8.4

24

26

16.5

12

31.5

LYF70M10D90

LYF90°70-10

10.5

24

30

16.5

12

31.5

LYF70M12D90

LYF90°70-12

13

24

32

16.5

12

31.5

LYF95M8D90

LYF90°95-8

8.4

29

26

20

15

32.5

LYF95M10D90

LYF90°95-10

10.5

29

30

20

15

32.5

LYF95M12D90

LYF90°95-12

13

29

32

20

15

32.5

LYF95M16D90

LYF90°95-16

17

29

36

20

15

32.5

LYF120M10D90

LYF90°120-10

10.5

32

30

22

17

34.5

LYF120M12D90

LYF90°120-12

13

32

32

22

17

34.5

LYF120M16D90

LYF90°120-16

17

32

36

22

17

34.5
