PART NO. 規格/編碼 |
ITEM NO. 品名型號 |

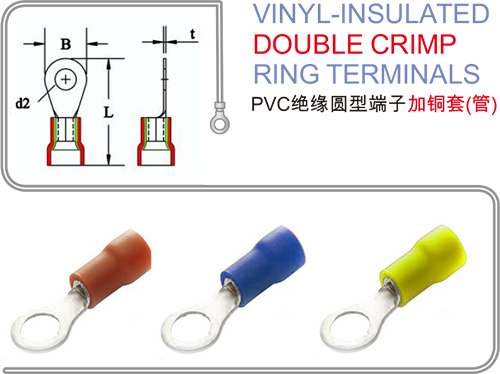

尺寸DIMENSIONS(mm) |
STUD SIZE |
WIRE RANGE 電線(xiàn)范圍 A .W.G.mm2 |
|||
|
B |
d 2 |
L |
t |
||||
|
VDR2.5-1B |
VDR2.5-1B |
6.00 |
2.70 |
19.00 |
0.80 |
#3 |
22-16 A.W.G. 0.5-1.5 mm2 |
|
VDR3-1B |
VDR3-1B |
6.00 |
3.20 |
#4 |
|||
|
VDR3.5-1B |
VDR3.5-1B |
6.00 |
3.70 |
#6 |
|||
|
VDR4-1B |
VDR4-1B |
8.00 |
4.30 |
21.00 |
#8 |
||
|
VDR5-1B |
VDR5-1B |
10.00 |
5.30 |
23.00 |
#10 |
||
|
VDR6-1B |
VDR6-1B |
11.00 |
6.50 |
25.50 |
1/4 |
||
|
VDR8-1B |
VDR8-1B |
14.00 |
8.40 |
29.50 |
5/16 |
||
|
VDR10-1B |
VDR10-1B |
18.00 |
10.50 |
33.50 |
3/8 |
||
|
VDR3-2.5B |
VDR3-2.5B |
6.00 |
3.20 |
20.00 |
#4 |
16-14 A.W.G. 1.5-2.5 mm2 |
|
|
VDR3.5-2.5B |
VDR3.5-2.5B |
6.00 |
3.70 |
#6 |
|||
|
VDR4-2.5B |
VDR4-2.5B |
8.00 |
4.30 |
22.00 |
#8 |
||
|
VDR5-2.5B |
VDR5-2.5B |
10.00 |
5.30 |
25.00 |
#10 |
||
|
VDR6-2.5B |
VDR6-2.5B |
11.00 |
6.50 |
27.50 |
1/4 |
||
|
VDR8-2.5B |
VDR8-2.5B |
14.00 |
8.40 |
30.00 |
5/16 |
||
|
VDR10-2.5B |
VDR10-2.5B |
18.00 |
10.50 |
34.00 |
3/8 |
12-10 A.W.G. 4-6 mm2 |
|
|
VDR4-6B |
VDR4-6B |
8.00 |
4.30 |
25.00 |
1.00 |
#8 |
|
|
VDR5-6B |
VDR5-6B |
10.00 |
5.30 |
27.50 |
#10 |
||
|
VDR6-6B |
VDR6-6B |
11.00 |
6.50 |
29.00 |
1/4 |
||
|
VDR8-6B |
VDR8-6B |
14.00 |
8.40 |
33.50 |
5/16 |
||
|
VDR10-6B |
VDR10-6B |
18.00 |
10.50 |
37.50 |
3/8 |
||
|
VDR12-6B |
VDR12-6B |
19.00 |
13.00 |
43.00 |
1/2 |
||
