PART NO.

規格/編碼

ITEM NO.

品名型號

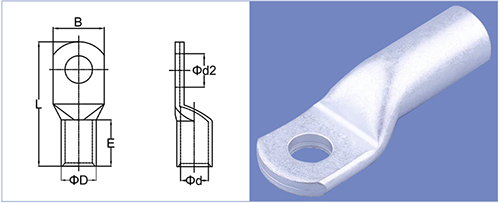

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

DIN6M5

DIN6-5

5.3

8.5

30.5

5.5

3.8

10

DIN6M6

DIN6-6

6.4

8.5

31.5

DIN6M8

DIN6-8

8.4

13

34

DIN10M5

DIN10-5

5.3

9

34

6

4.5

10

DIN10M6

DIN10-6

6.4

9

34.5

DIN10M8

DIN10-8

8.4

13

37

DIN10M10

DIN10-10

10.5

15

39

DIN16M6

DIN16-6

6.4

13

43.5

8.5

5.5

20

DIN16M8

DIN16-8

8.4

13

46

DIN16M10

DIN16-10

10.5

17

48

DIN16M12

DIN16-12

13

18

49

DIN25M6

DIN25-6

6.4

14

45.5

10

7

20

DIN25M8

DIN25-8

8.4

16

48

DIN25M10

DIN25-10

10.5

17

50

DIN25M12

DIN25-12

13

19

51

DIN35M6

DIN35-6

6.4

17.5

49.5

12.5

8.2

20

DIN35M8

DIN35-8

8.4

17.5

52

DIN35M10

DIN35-10

10.5

19

54

DIN35M12

DIN35-12

13

21

55

DIN35M14

DIN35-14

15

21

56.5

DIN50M8

DIN50-8

8.4

20.3

62

14.5

10

28

DIN50M10

DIN50-10

10.5

22

64

DIN50M12

DIN50-12

13

24

65

DIN50M14

DIN50-14

15

24

66.5

DIN50M16

DIN50-16

17

28

68

DIN70M8

DIN70-8

8.4

24

65

16.5

11.5

28

DIN70M10

DIN70-10

10.5

24

67

DIN70M12

DIN70-12

13

24

68

DIN70M14

DIN70-14

15

24

69.5

DIN70M16

DIN70-16

17

30

71

DIN95M8

DIN95-8

8.4

28

77

19

13.5

35

DIN95M10

DIN95-10

10.5

28

77

DIN95M12

DIN95-12

13

28

78

DIN95M14

DIN95-14

15

28

79.5

DIN95M16

DIN95-16

17

32

81

PART NO.

規格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

DIN120M10

DIN120-10

10.5

30

85

21

15.5

35

DIN120M12

DIN120-12

13

30

86

DIN120M14

DIN120-14

15

30

88

DIN120M16

DIN120-16

17

30

89

DIN120M20

DIN120-20

21

38

91

DIN150M10

DIN150-10

10.5

34

93

23.5

17

35

DIN150M12

DIN150-12

13

34

94

DIN150M14

DIN150-14

15

34

97

DIN150M16

DIN150-16

17

34

97

DIN150M20

DIN150-20

21

40

99

DIN185M10

DIN185-10

10.5

37

97

25.5

19

40

DIN185M12

DIN185-12

13

37

98

DIN185M14

DIN185-14

15

37

101

DIN185M16

DIN185-16

17

37

101

DIN185M20

DIN185-20

21

40

103

DIN240M12

DIN240-12

13

42

108

29

21.5

40

DIN240M14

DIN240-14

15

42

111

DIN240M16

DIN240-16

17

42

111

DIN240M20

DIN240-20

21

45

113

DIN300M12

DIN300-12

13

46

119

32

24.5

50

DIN300M14

DIN300-14

15

46

119

DIN300M16

DIN300-16

17

46

119

DIN300M20

DIN300-20

21

46

122

DIN400M14

DIN400-14

15

55

140

38.5

27.5

70

DIN400M16

DIN400-16

17

55

140

DIN400M20

DIN400-20

21

55

140

DIN500M16

DIN500-16

17

60

150

42

31

70

DIN500M20

DIN500-20

21

60

150

DIN625M16

DIN625-16

17

64

160

44

34.5

80

DIN625M20

DIN625-20

21

64

160

DIN800M16

DIN800-16

17

75

195

52

40

100

DIN800M20

DIN800-20

21

75

195

DIN1000M16

DIN1000-16

17

85

195

58

44

100

DIN1000M20

DIN1000-20

21

85

195
