產品介紹：LYF銅管端子

該產品亦稱冷壓冷壓接線端子、端頭、街頭、線耳、接線鼻，廣泛應用于國內外電力開關控制柜、變壓器、電力電器、線束制造、軌道交通、通訊、船舶、航天、航天、光伏、風電、新能源機車、充電樁等行業和領域

產品特點：

·采用99.9%高純度紫銅，極大降低產品的阻抗，提高產品的導電性能

·15年生產經驗，優秀做工，產品外觀規整無毛刺

·表面鍍錫處理，耐磨防腐抗氧化（可根據客戶需求鍍其他材質）

·支持加工定制/訂制

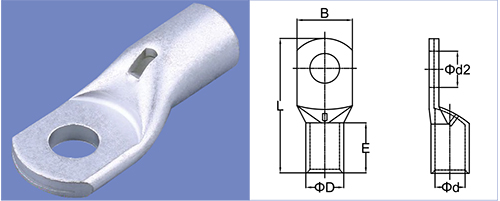

PART NO. 規格/編碼	ITEM NO. 品名型號	尺寸DIMENSIONS(mm)
PART NO. 規格/編碼	ITEM NO. 品名型號	Φd 2	B	L	ΦD	Φd	E
LYF10M5	LYF10-5	5.3	11.5	28	8	5	9
LYF10M6	LYF10-6	6.5	11.5	28
LYF10M8	LYF10-8	8.4	13.5	32
LYF10M10	LYF10-10	10.5	16	34
LYF16M6	LYF16-6	6.5	13	33	9	6	10
LYF16M8	LYF16-8	8.4	13	33
LYF16M10	LYF16-10	10.5	16	38
LYF16M12	LYF16-12	13	22	47			14
LYF25M6	LYF25-6	6.5	16	37	11	8	11
LYF25M8	LYF25-8	8.4	16	38
LYF25M10	LYF25-10	10.5	17	42
LYF25M12	LYF25-12	13	22	47
LYF35M6	LYF35-6	6.5	18	44	13	9	14
LYF35M8	LYF35-8	8.4	18	44
LYF35M10	LYF35-10	10.5	18	44
LYF35M12	LYF35-12	13	22	52
LYF50M6	LYF50-6	6.5	21	50	14.5	11	17
LYF50M8	LYF50-8	8.4	21	50
LYF50M10	LYF50-10	10.5	21	50
LYF50M12	LYF50-12	13	21	53
LYF70M6	LYF70-6	6.5	25	55	17	13	20
LYF70M8	LYF70-8	8.4	25	55
LYF70M10	LYF70-10	10.5	25	55
LYF70M12	LYF70-12	13	25	58
LYF70M16	LYF70-16	17	28	64
LYF95M8	LYF95-8	8.4	29	69	20	15	23
LYF95M10	LYF95-10	10.5	29	69
LYF95M12	LYF95-12	13	29	69
LYF95M16	LYF95-16	17	29	69

PART NO. 規格/編碼	ITEM NO. 品名型號	尺寸DIMENSIONS(mm)
PART NO. 規格/編碼	ITEM NO. 品名型號	Φd 2	B	L	ΦD	Φd	E
LYF120M10	LYF120-10	10.5	32	73	22	17	25
LYF120M12	LYF120-12	13	32	73
LYF120M16	LYF120-16	17	32	73
LYF150M10	LYF150-10	10.5	36	80	25	19	30
LYF150M12	LYF150-12	13	36	80
LYF150M16	LYF150-16	17	36	80
LYF150M20	LYF150-20	21	36	87
LYF185M10	LYF185-10	10.5	39	86	27	21	35
LYF185M12	LYF185-12	13	39	86
LYF185M16	LYF185-16	17	39	86
LYF185M20	LYF185-20	21	39	93
LYF240M10	LYF240-10	10.5	44	95	30	24	35
LYF240M12	LYF240-12	13	44	95
LYF240M16	LYF240-16	17	44	95
LYF240M20	LYF240-20	21	44	95
LYF300M10	LYF300-10	10.5	47	114	32	26	42
LYF300M12	LYF300-12	13	47	114
LYF300M16	LYF300-16	17	47	114
LYF300M20	LYF300-20	21	47	114
LYF300M24	LYF300-24	26	47	114
LYF400M12	LYF400-12	13	54	126	36	30	48
LYF400M16	LYF400-16	17	54	126
LYF400M20	LYF400-20	21	54	126
LYF400M24	LYF400-24	26	54	126
LYF500M20	LYF500-20	21	61	134	42	33	47
LYF500M24	LYF500-24	26	61	134	42	33	47
LYF630MBL	LYF630-BL		75	180	53	39	68
LYF630M20	LYF630-20	21	75	180
LYF630M24	LYF630-24	26	75	180
